Migrate Raspberry Pi SD card to SSD

July 30, 2022

Disk intensive applications such as kubernetes can run on Raspberry Pi 4, but you need to migrate from the SD card to an SSD drive.

Raspberry Pi can boot from USB, so you don’t have to wear out your SD card anymore.

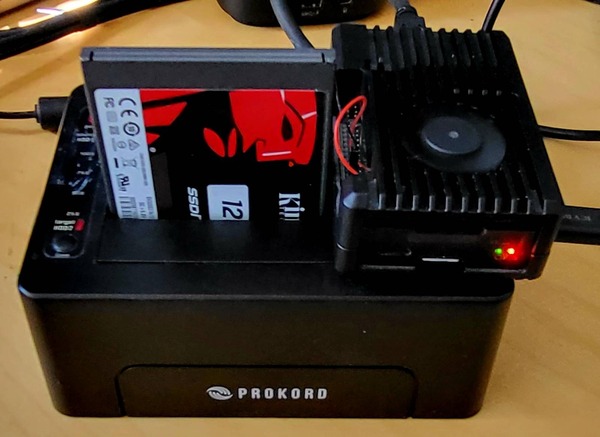

Hardware

This is what you need to configure your raspberry pi:

  • A USB3 SATA or M.2 case
  • SSD disk
  • Os already installed on the old SD card

Set up

Boot up your rpi4 on the SD card. Log in and connect the USB drive and check out your device names:

pi@raspberrypi:~ $ lsblk
NAME        MAJ:MIN RM   SIZE RO TYPE MOUNTPOINT
sda           8:0    0 111.8G  0 disk
|-sda1        8:1    0   256M  0 part
`-sda2        8:2    0  29.6G  0 part
mmcblk0     179:0    0  29.8G  0 disk
|-mmcblk0p1 179:1    0   256M  0 part /boot
`-mmcblk0p2 179:2    0  29.6G  0 part /
pi@raspberrypi:~ $

In this case the USB drive name is sda and mmcblk0 is the SD card. If you’re unsure, unplug the USB drive and plug it in again so you don’t accidentially overwrite your SD card.

Next steps will erase all data on your SSD (the “sda” device) and copy your SD card image in one step. You’ve been warned.

pi@raspberrypi:~ $ sudo dd if=/dev/mmcblk0 of=/dev/sda status=progress

Grow the filesystem

pi@raspberrypi:~ $ sudo parted /dev/sda print
Model:   (scsi)
Disk /dev/sda: 120GB
Sector size (logical/physical): 512B/512B
Partition Table: msdos
Disk Flags:

Number  Start   End     Size    Type     File system  Flags
 1      4194kB  273MB   268MB   primary  fat32        lba
 2      273MB   40.0GB  39.7GB  primary  ext4
pi@raspberrypi:~ $ NEWDISKSIZE=$(sudo parted /dev/sda print | grep ^'Disk /dev/sda' | awk '{print $NF}')
pi@raspberrypi:~ $ sudo parted /dev/sda resizepart 2 ${NEWDISKSIZE}             # Expand filesystem
pi@raspberrypi:~ $ sudo fsck.ext4 /dev/sda2
pi@raspberrypi:~ $ sudo tune2fs /dev/sda2 -L rootfs-SSD                         # Set a new label on the root fs
pi@raspberrypi:~ $ OLDUUID=$(awk '$2 == "/" {print $1}' /etc/fstab)
pi@raspberrypi:~ $ sudo mount /dev/sda2 /mnt/
pi@raspberrypi:~ $ sudo sed -i "s/${OLDUUID}/LABEL=rootfs-SSD/g" /mnt/etc/fstab # Mount the label as root in the new fstab

Now configure the machine to prioritize USB boot first

pi@raspberrypi:~ $ sudo raspi-config

Advanced Options > Boot Order > USB Boot

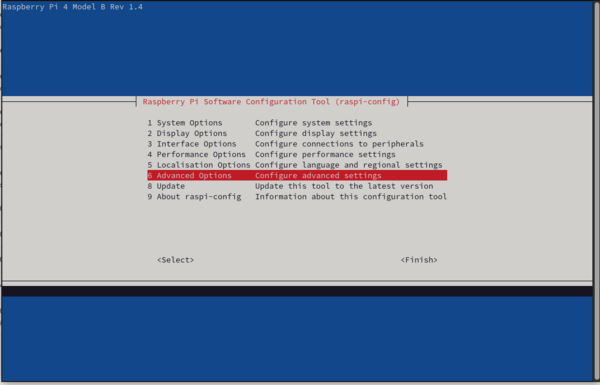

Step1

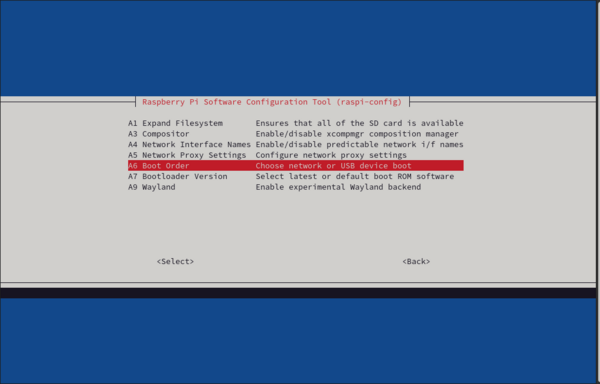

Step2

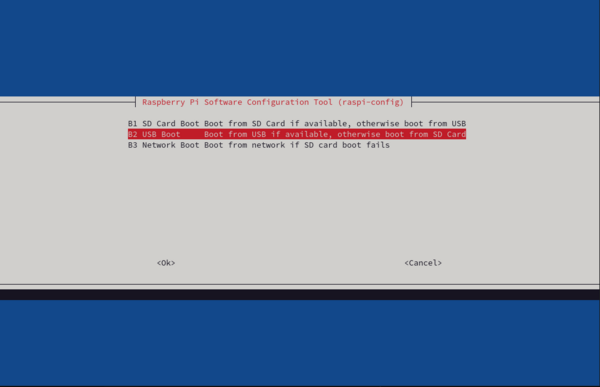

Step3
Step4

Shut down your raspberry and take out the SD card before powering it on again.
